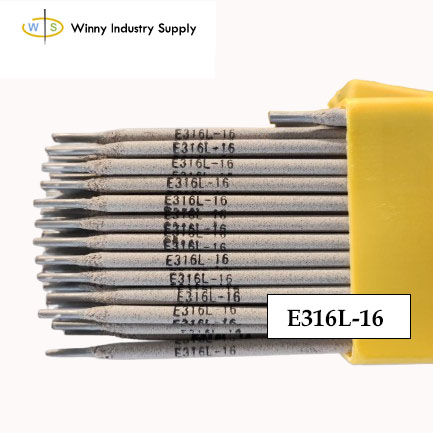

Stick Electrode

Stainless Steel //E316L-16

CLASSIFICATION
AWS A5.4 E316L-16



Enquiry now

  • Check Mark Made in China
  • Check Mark FCL or LCL available
  • Check Mark Guaranteed Quality
Category:

Description

E316L-16 is a rutile-low hydrogen potassium stainless steel electrode designed for welding 316/316L austenitic stainless steels, including steels with high molybdenum content. With low carbon content  and high molybdenum, it delivers exceptional resistance to chloride-induced corrosion, pitting, and stress corrosion cracking, making it ideal for demanding environments such as chemical processing, marine engineering, and food production. The rutile-low hydrogen potassium coating ensures stable arc, minimal spatter, and easy slag removal,making it suitable for all-position welding

KEY FEATURES

  • Low Carbon Content: The low carbon content (<0.03%) minimizes the risk of carbide precipitation in the weld heat-affected zone, providing excellent resistance to intergranular corrosion.
  • Superior Corrosion Resistance:Resists chlorides, seawater, and weak acids, compliant with chemical and marine industry standards.
  • Good Weldability: Ensures smooth arc control and low spatter, delivering consistent weld quality in all positions.
  • All position welding
  • Suitable for marine applications,food and pharmaceutical Industries,chemical process equipment

DIAMETER

  • 2.0 mm
  • 2.4 mm (3/32 inch)
  • 3.2 mm (1/8 inch)
  • 4.0 mm (5/32 inch)
  • 4.8 mm (3/16 inch)

CHEMICAL COMPOSITION

%C %Mn %Si %S %P %Ni %Cr %Mo %Cu
0.025 1.91 0.42 <=0.03 <=0.03 12.58 19.1 2.57 <=0.75
